Auto butter dairy thermoform packaging machine with auto filling

  • >=1 Pieces
    $58,000.00
Power:
13-20KW
Model Number:
DZL
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Application:
Food, Medical, Chemical, Machinery & Hardware
Packaging Material:
Plastic, Metal
Type:
Multi-Function Packaging Machine
Condition:
New
Function:
Filling, Labeling, Sealing, Slitting, auto form fill seal
Packaging Type:
Film, Foil
Automatic Grade:
Automatic
Driven Type:
Hydraulic
Voltage:
380v
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Utien Pack
Dimension(L*W*H):
6000*1300*1870mm
Certification:
CE, ISO
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Material:
304 stainless steel
Name:
butter thermoforming packaging machine
Packing speed:
6-8 circles/min
Packing option:
vacuum
Packing option2:
vacuum and gas flush
Packing option3:
vacuum skin packing
Supply Ability
Supply Ability:
50 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
1)Airproof stretch film ;2)strong steel foundation;3) one machine for one 20'' container
Port
Shanghai / Ningbo port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Machine description

Auto thermoforming packaging machine

It's an automatic packaging machine. It's able to finish the whole process from package forming, filling/loading,sealing to final cutting.

With special technology, it's helpful to increase your capacity, lower your cost, and make your product more fresh and appealing.

It's excellent for ketchup packaging. Also it has been widely applied in other food, medical,chemistry industry.

Advantages:

1) High capacity---over 10,000 small packs per day
2) Cost effective---maximumly reducing cost of labor and materials
3) Easy operation---by finger touch on PLC screen.
4) Reliable quality---spare parts of international top brands.
5) Flexible design--- Various package shapes,volumn and output


Machine details

TOP SAFETY

Safety is our top concern in machine design.To ensure the security of worker and machine,many sensors are installed under the cover, inside the door and other removable parts to make sure the machine can auto-stop while the covers and doors are open.




HIGH AUTOMATION

The machine is fully automatic from package forming to final product output. And it can be fully controlled by 10'' PLC touch screen.




INDIVIDUAL DESIGN.

We have a team of engineers to design every machine detail for customers' sastification.Also we're capable to apply other third party equipment to make a better auto packaging line.


TECHNICAL DATA

MACHINE PARAMETERS
Dimension
6000*1300*1870mm
Weight
2000kg
Working height
1000mm
Operating panel height
1600mm
Loading area length
1500mm
Working parameters
Bottom film width
≤600mm
Advance length
≤500mm
Forming depth
≤150mm
Top film
Material
Sealable PE\PA Multi-layer Co-extruded Plastic Film
Print
Pre-printed Top Film or Transparent Top Film
Roll diameter
≤250mm
Thickness
≤200um
BOTTOM FILM
Material
Sealable PE\PA Multi-layer Co-extruded Plastic Film
Print
Pre-printed Top Film or Transparent Top Film
Roll diameter
≤500mm
Thickness
≤300um
Components
Vacuum Pump
BUSCH(Germany)
Electrical Components
Scheneider(French)
Pneumatic Components
SMC(Japanese)
PLC, Touch Screen & Servo Motor
DELTA(Taiwan)

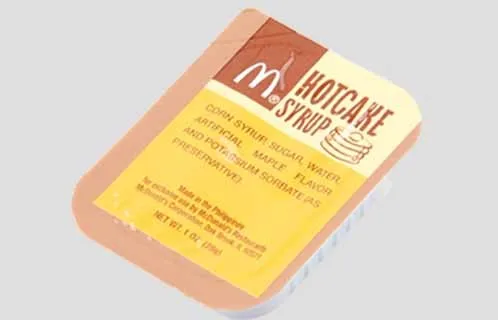

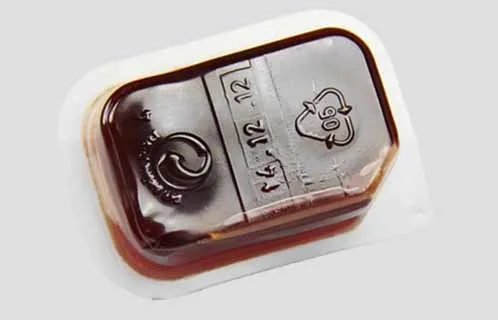

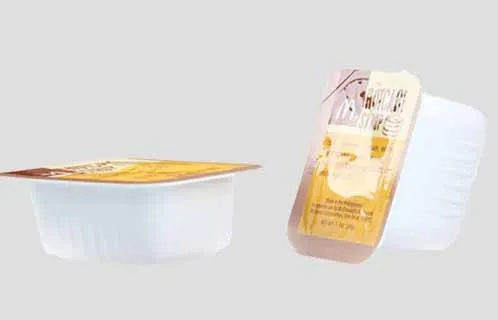

Package details

Point 1

Nice apprearance.

Point 2

Long shelf life

Point 3

Easy tear corner

Our service




FAQ


Q1.How long does it take to deliver the machine after the order & deposit?

A1:Usually it will take 90 working days to manufacture the machine and make it ready to deliver. At first 30 days the technical drawing will be made. The second 30 days start manufacturing the parts and ready to assemble. In the last 30 days the machine will be assembled and tuned to make sure it is ready to deliver.

Q2:What do you need to make a specific offer for my product?

A2:To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project.

Q3:Can you offer oversea service?

A3:Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange engineer to go to your factory personally to solve the issue.

More application

                Bread MAP pack

                     Donut MAP pack

                    Cheese vacuum pack
